Processing & Services
Every order is processed in-house to your dimensions — from slitting and shearing to edge conditioning, winding and packaging.
Precision Slitting
Our slitting lines cut wide master coils into narrow strip to your exact width, from .020″ up to 36″. Experienced operators and specially engineered equipment hold tight width tolerances on thin-gauge material.
- Thickness
- .0005″ – .040″
- Width
- .020″ – 36″
- Width tolerance
- As tight as ±.001″*
- I.D. / O.D.
- 3–20″ I.D. / 36″ max O.D.
*Slit tolerance of ±.001″ may not be possible on all alloy / temper / thickness / width combinations — subject to review.
Shearing & Cut-to-Length
When coil won’t do, we cut sheets to the width and length you specify — no need to settle for standard sheet sizes.
- Thickness
- .002″ – .040″
- Width
- 1″ – 37″
- Length
- Up to 240″
Edge Conditioning
Strip can be supplied with the standard as-slit edge or with a conditioned edge for safer handling and cleaner downstream processing.
Oscillate (Traverse) Winding
Narrow strip can be oscillate wound onto spools, putting far more footage on each package than a pancake coil for longer, uninterrupted production runs. Strip lengths are joined with laser welds.
- Thickness
- .002″ – .020″
- Width
- .125″ – .785″
- Small spool
- 1.5″ I.D. / 11.75″ O.D. (7″ traverse)
- Large spool
- 5″ I.D. / 22″ O.D. (11″ traverse)

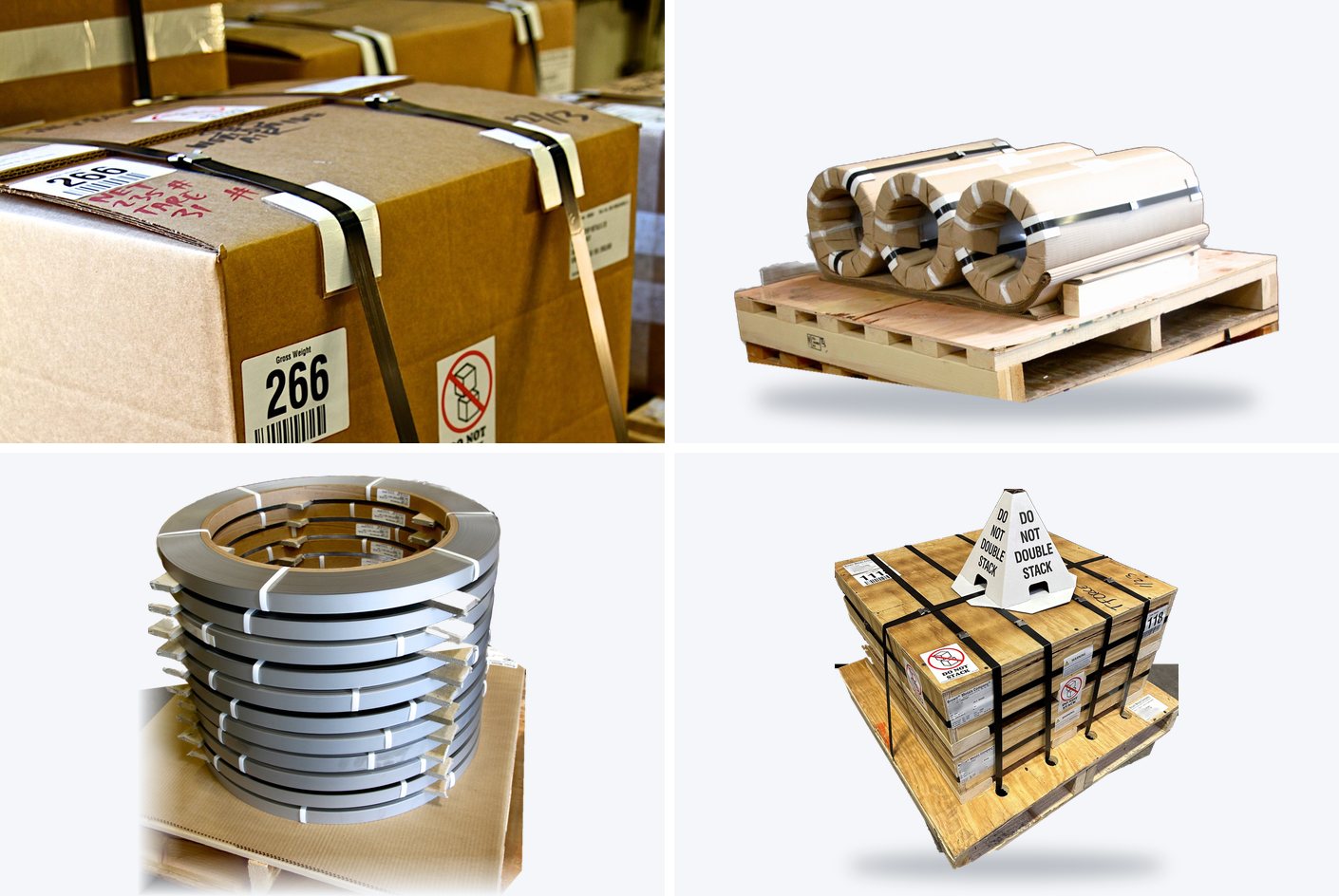

Custom Packaging
Coils are wound on cardboard cores in the coil sizes you specify. Cut sheets ship in custom boxes or on skids, packaged to protect material in transit — at no extra charge.

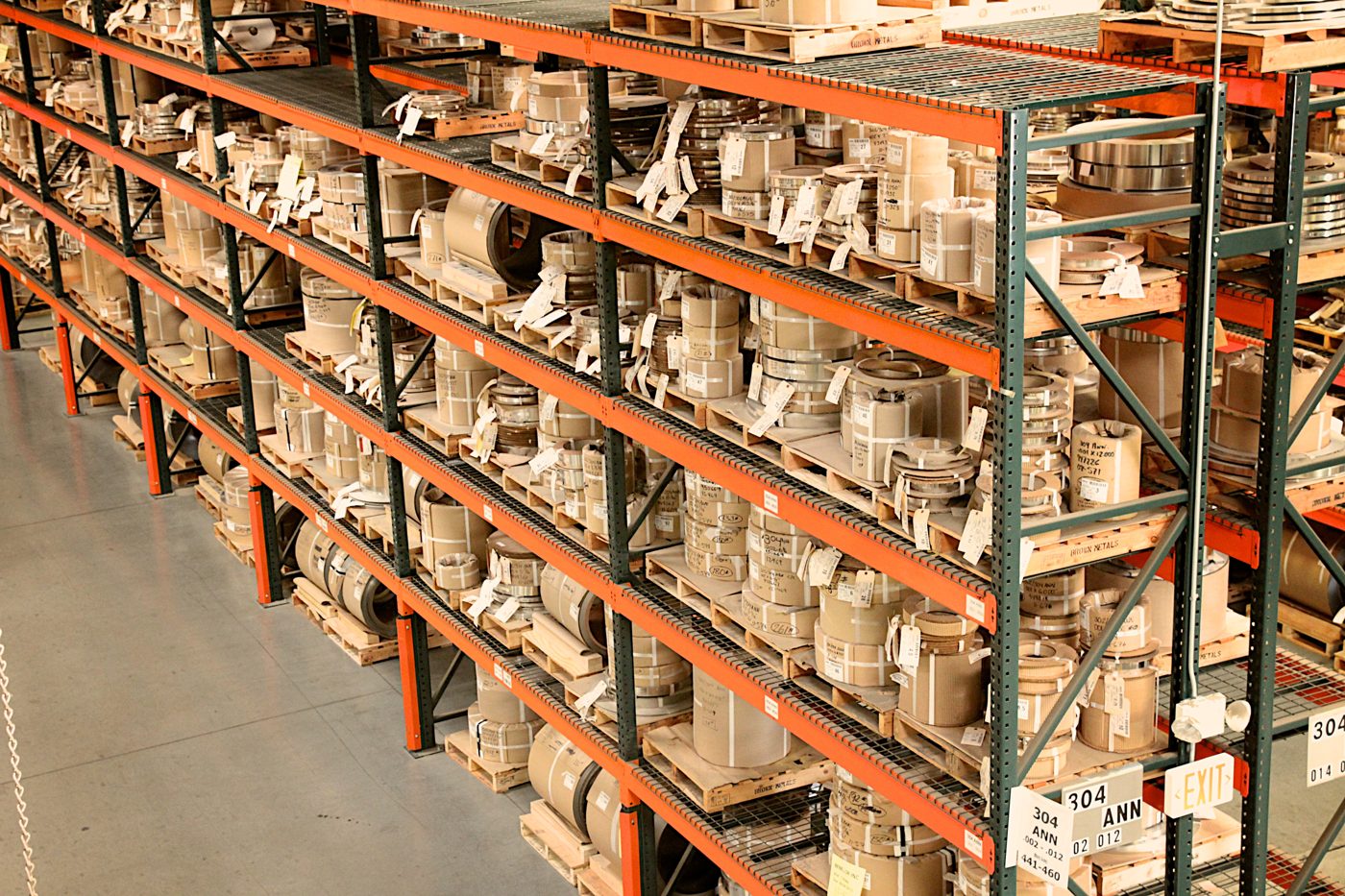

Toll Processing & Warehousing
Send us your own material and we will slit or shear it to your requirements — up to .040″ thick and as narrow as .020″ wide. Warehouse storage is also available.
Need material processed to your dimensions?
Send us the alloy, temper, thickness, width and packaging you need.See more on our YouTube channel.
